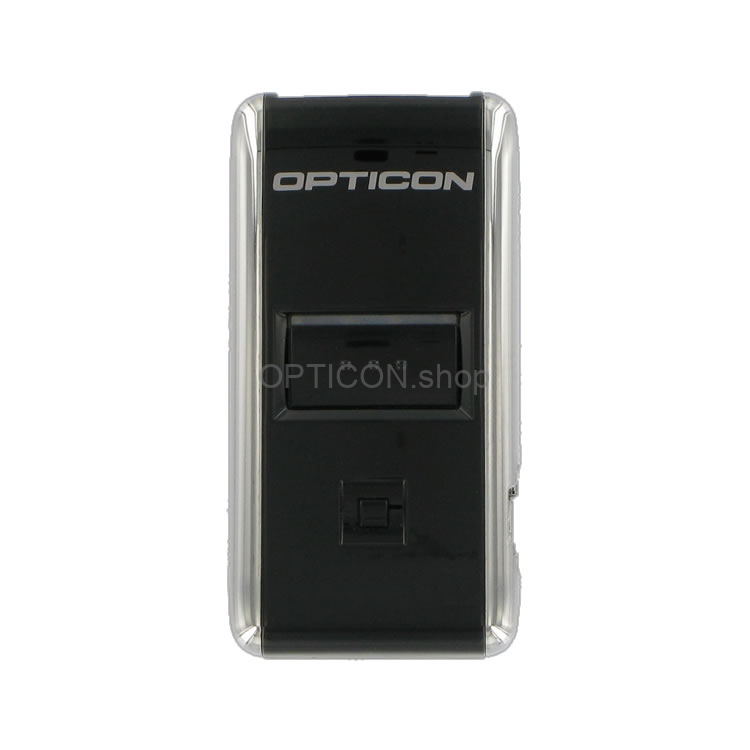

The OPN-2006 is a small and lightweight companion scanner that fits easily in your pocket, making it easy to take it anywhere. The scanner is set up with Android, Apple, Blackberry or Windows mobile through Bluetooth 4.0 or Bluetooth Low Energy (BLE). With this Bluetooth connection it ensures you of real-time data sync with your computer or system. This means that your system is always up-to-date with the right data. When no connection is available the scanner holds up to 20.000 scans that will transfer to the system through the complimentary USB-cable. You can customize the OPN-2006 using a free Software development kit. The quality 1D laser scan engine inside ensures possibility of a 100 scans a second. The OPN-2006 provides audible and visible feedback after a successful scan.
The scanner does not require any technical know-how to set it up and the set-up only takes a few minutes. This device is proven to be a reliable and quick scanner that makes life easier.Opticon OPN-2006 Bluetooth memory scanner combines convenient barcode data collection with flexible communication options. The device allows storage and removal of barcode scans. The final collection can be transmitted by cabled or wireless interface, both options are provided.
Product Features
A few highlights that makes OPN-2006 the perfect companion to scan with:
- Small and lightweight
- Versatile
- Bluetooth for real-time data transfer
- Easy to set up and use.
Properties
Physical
Technical details
IP Ratings (Ingress Protection)
A two-digit number established by the International Electro Technical Commission, is used to provide an Ingress Protection rating to a piece of electronic equipment or to an enclosure for electronic equipment.
The protection class after EN60529 are indicated by short symbols that consist of the two code letters IP and a code numeral for the amount of the protection.
Example: IP65 (NEMA 4)
The two digits represent different forms of environmental influence:
• The first digit represents protection against ingress of solid objects.
• The second digit represents protection against ingress of liquids.
The larger the value of each digit, the greater the protection. As an example, a product rated IP54 would be better protected against environmental factors than another similar product rated as IP42.
IP TABLE:
| IP.. | First digit: Ingress of solid objects |
Second digit: Ingress of liquids |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protected against solid objects over 50mm e.g. hands, large tools. | Protected against vertically falling drops of water or condensation. |
| 2 | Protected against solid objects over 12.5mm e.g. hands, large tools. | Protected against falling drops of water, if the case is disposed up to 15 from vertical. |
| 3 | Protected against solid objects over 2.5mm e.g. wire, small tools. | Protected against sprays of water from any direction, even if the case is disposed up to 60from vertical. |
| 4 | Protected against solid objects over 1.0mm e.g. wires. | Protected against splash water from any direction. |
| 5 | Limited protection against dust ingress. (no harmful deposit) |
Protected against low pressure water jets from any direction. Limited ingress permitted. |
| 6 | Totally protected against dust ingress. | Protected against high pressure water jets from any direction. Limited ingress permitted. |
| 7 | N/A | Protected against short periods of immersion in water. |
| 8 | N/A | Protected against long, durable periods of immersion in water. |
| 9k | N/A | Protected against close-range high pressure, high temperature spray downs. |
| Not Rated |
The device's IP for solid objects has not been rated. | The device's IP for liquids has not been rated. |
USB-HID
HID = Human Input Device ; output emulated like a keyboard.
The data is entered at the point of the cursor or current focus (in a form).
Language and keyboard selection need to match between scanner and host!
USB-VCP
VCP = Virtual Comm Port ; output is send to the assigned comm port.
In most cases a driver is neccessary!
USB-MSD
MSD = Mass Storage Device ; emulates storage like an USB-stick.
Plugging in the device in this mode makes the devices' internal storage directly accessible from your host.
In general in Windows you will see a pop-up/notification of a drive letter that has been mounted.
USB-OTG
OTG = On The Go ; enables the USB port to act as a host on PDA's/smartphones and tablets, allowing input from a keyboard.
The data is entered at the point of the cursor or current focus (in a form).
Language and keyboard selection need to match between scanner and host!
ETHERNET
Wired Ethernet connection via DHCP or Fixed IP.
Older supported protocols:
ActiveSync
Communication through Microsoft ActiveSync.
RS232
Communication through the wired direct RS232 protocol.
Wedge
Old style PS/2 connections for keyboard/mouse communication.
- USB-VCP
- Bluetooth HID
- Bluetooth SPP
Which type of symbologies can be decoded?
.png) |
 Code 39 |
 Code 128 |
 EAN-13 |
.png) |
 QR-code |
 Datamatrix |
 Aztec |
.png) |
Machine Readable Travel Documents |
 |
|
These are samples to show what is meant by this feature.
Please contact us for assistance when in doubt about scanning/decoding functionality.
- 1D
