Precision and Versatility
Discover the ultimate barcode scan engine, featuring a high-resolution CMOS Image Sensor 2D, a custom wide-angle lens, and adjustable illumination LEDs for enhanced lighting. It has an intuitive touch-to-scan functionality ensuring user-friendly operation.

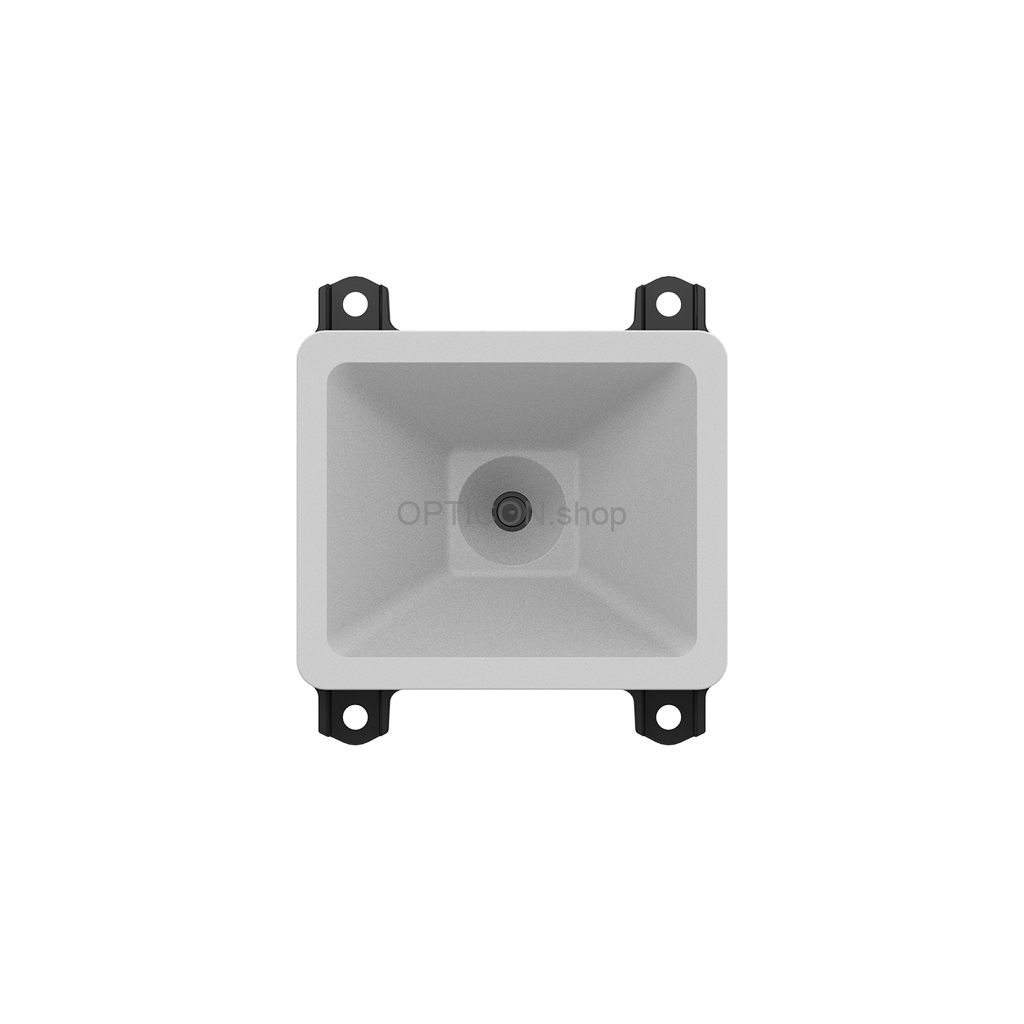

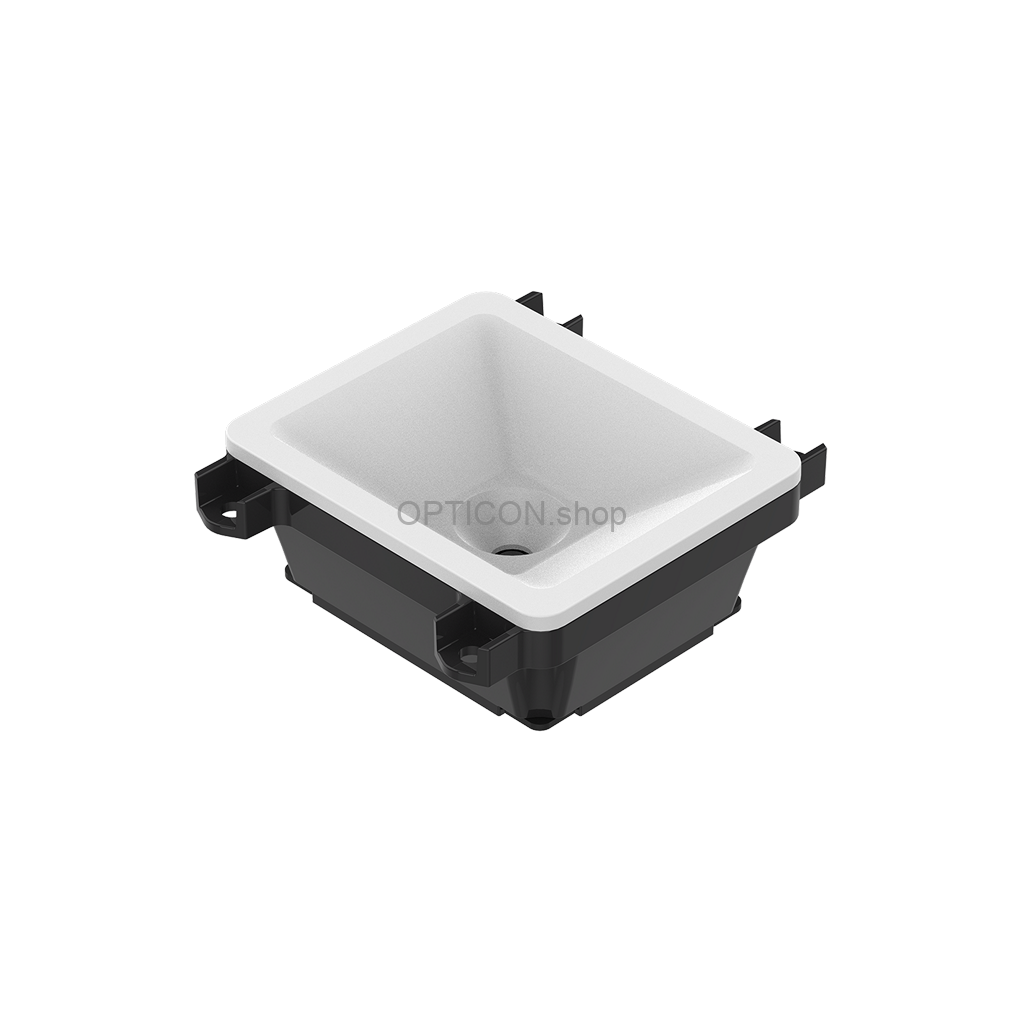

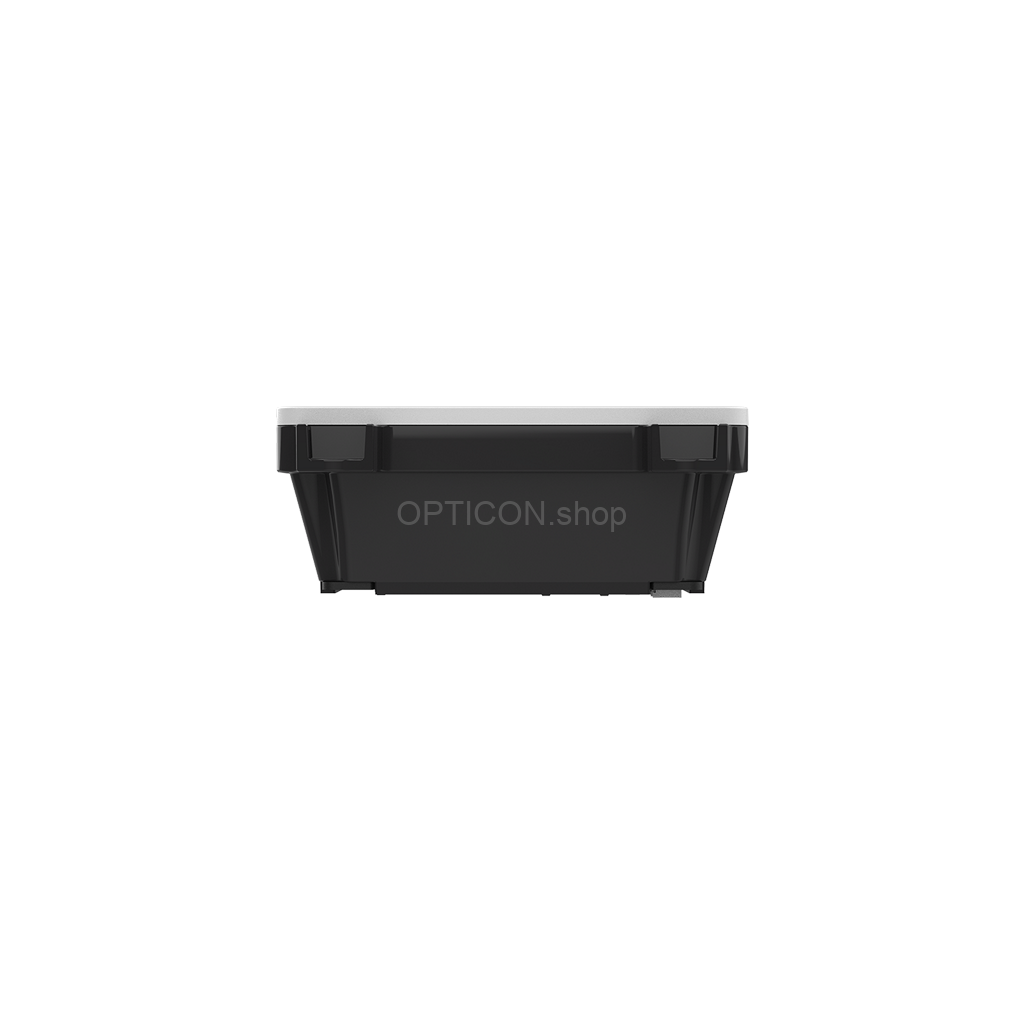

This fixed mount engine without housing is ideal for integration into kiosk, production lines and other automated systems where space is limited, and housing is provided by the application itself. The holes make it possible to secure mounting onto different surfaces or devices.
Key features for superior performance
- CMOS image sensor 2D: High-resolution CMOS sensor ensures accurate and reliable scanning of 2D barcodes.
- Custom wide-angle lens: Expansive field of view for easy capture of barcodes in various orientations.
- Adjustable illumination LEDs: Enhanced lighting for optimal barcode visibility, even in low-light environments.
- Good read LEDs: Clear status indication with dual LEDs, confirming successful scans.
- Buzzer: Audible feedback signals ensure quick acknowledgment of barcode reads.

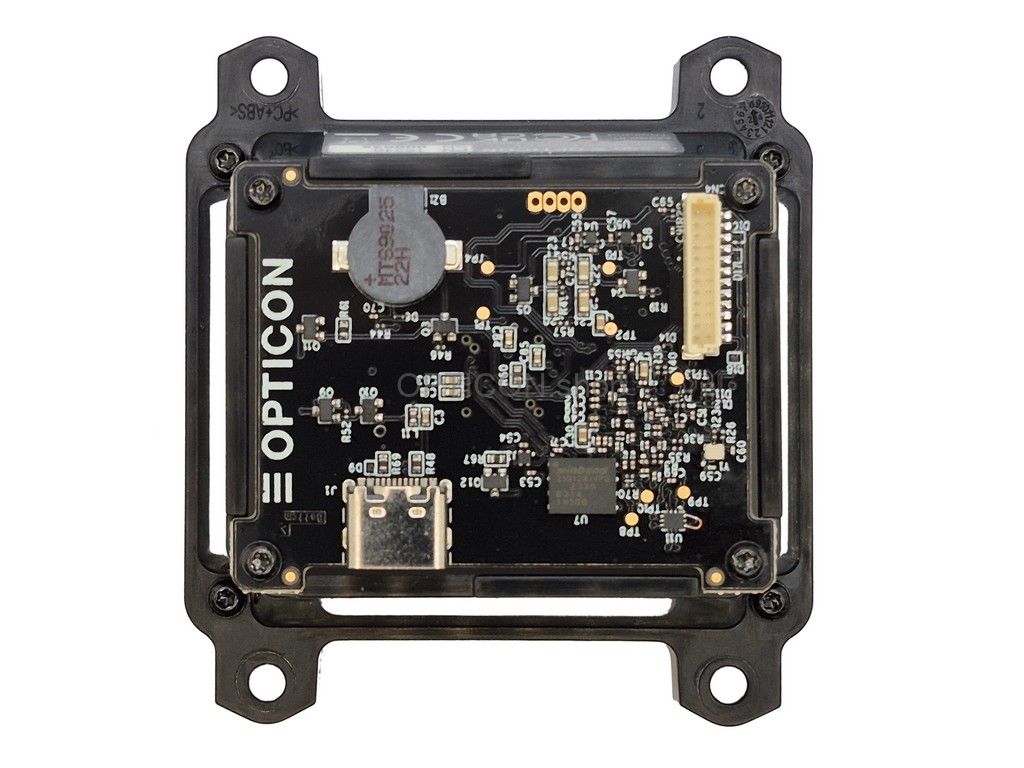

- USB-C interface: for seamless integration.
Specifications
- Operating temperature: Designed for extreme conditions, functioning reliably between -20°C and 70°C.
- CMOS resolution: 640 x 480 pixels for sharp and detailed image capture.
- Frame rate: High-speed scanning with 120 frames per second, ensuring efficient and fast operation.
How to use
Our barcode scan engine is versatile and easy to integrate into various applications:
- Use case: Ideal for integration in third-party products.
- Connection options: Utilize either an USB or RS232 interface for connectivity.
- Touch to scan: Simple touch-to-scan functionality makes operation intuitive and user-friendly.
- Window: recommended scan windows with AR coated materials, glass or acrylic material, and anti scratch coated.
- Support: Always reach out to our support team to ensure the best configuration tailored to your customer’s needs.
When a case is needed to easily build this into your application, check out the P-250.
Properties
Physical
Physical connections:
USB type connections (most common):
subD9 type serial/RS232C connections:
a D9 connector has a 9 pins (or lines)
RJ45 type serial/RS232C connection:
an RJ45 connector has a 8 pins (or lines)
RJ45 type ethernet connection:
an RJ45 connector has a 8 pins (or lines)
RJ50 PIGTAIL type connection:
an RJ45 connector has a 8 pins (or lines)
Pigtail means the cable runs from the device ending in a connector.

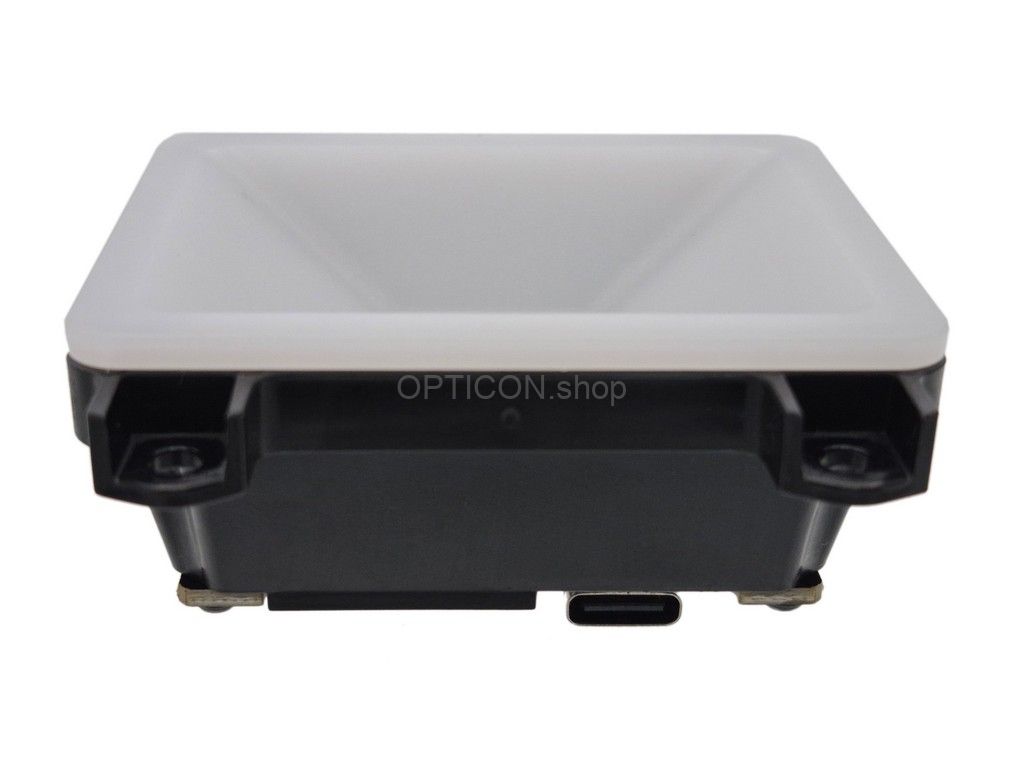

- USB-C
Technical details
IP Ratings (Ingress Protection)
A two-digit number established by the International Electro Technical Commission, is used to provide an Ingress Protection rating to a piece of electronic equipment or to an enclosure for electronic equipment.
The protection class after EN60529 are indicated by short symbols that consist of the two code letters IP and a code numeral for the amount of the protection.
Example: IP65 (NEMA 4)
The two digits represent different forms of environmental influence:
• The first digit represents protection against ingress of solid objects.
• The second digit represents protection against ingress of liquids.
The larger the value of each digit, the greater the protection. As an example, a product rated IP54 would be better protected against environmental factors than another similar product rated as IP42.
IP TABLE:
| IP.. | First digit: Ingress of solid objects |
Second digit: Ingress of liquids |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protected against solid objects over 50mm e.g. hands, large tools. | Protected against vertically falling drops of water or condensation. |
| 2 | Protected against solid objects over 12.5mm e.g. hands, large tools. | Protected against falling drops of water, if the case is disposed up to 15 from vertical. |
| 3 | Protected against solid objects over 2.5mm e.g. wire, small tools. | Protected against sprays of water from any direction, even if the case is disposed up to 60from vertical. |
| 4 | Protected against solid objects over 1.0mm e.g. wires. | Protected against splash water from any direction. |
| 5 | Limited protection against dust ingress. (no harmful deposit) |
Protected against low pressure water jets from any direction. Limited ingress permitted. |
| 6 | Totally protected against dust ingress. | Protected against high pressure water jets from any direction. Limited ingress permitted. |
| 7 | N/A | Protected against short periods of immersion in water. |
| 8 | N/A | Protected against long, durable periods of immersion in water. |
| 9k | N/A | Protected against close-range high pressure, high temperature spray downs. |
| Not Rated |
The device's IP for solid objects has not been rated. | The device's IP for liquids has not been rated. |
USB-HID
HID = Human Input Device ; output emulated like a keyboard.
The data is entered at the point of the cursor or current focus (in a form).
Language and keyboard selection need to match between scanner and host!
USB-VCP
VCP = Virtual Comm Port ; output is send to the assigned comm port.
In most cases a driver is neccessary!
USB-MSD
MSD = Mass Storage Device ; emulates storage like an USB-stick.
Plugging in the device in this mode makes the devices' internal storage directly accessible from your host.
In general in Windows you will see a pop-up/notification of a drive letter that has been mounted.
USB-OTG
OTG = On The Go ; enables the USB port to act as a host on PDA's/smartphones and tablets, allowing input from a keyboard.
The data is entered at the point of the cursor or current focus (in a form).
Language and keyboard selection need to match between scanner and host!
ETHERNET
Wired Ethernet connection via DHCP or Fixed IP.
Older supported protocols:
ActiveSync
Communication through Microsoft ActiveSync.
RS232
Communication through the wired direct RS232 protocol.
Wedge
Old style PS/2 connections for keyboard/mouse communication.
- USB-HID
- USB-VCP
Which type of symbologies can be decoded?
.png) |
 Code 39 |
 Code 128 |
 EAN-13 |
.png) |
 QR-code |
 Datamatrix |
 Aztec |
.png) |
Machine Readable Travel Documents |
 |
|
These are samples to show what is meant by this feature.
Please contact us for assistance when in doubt about scanning/decoding functionality.
- 2D
