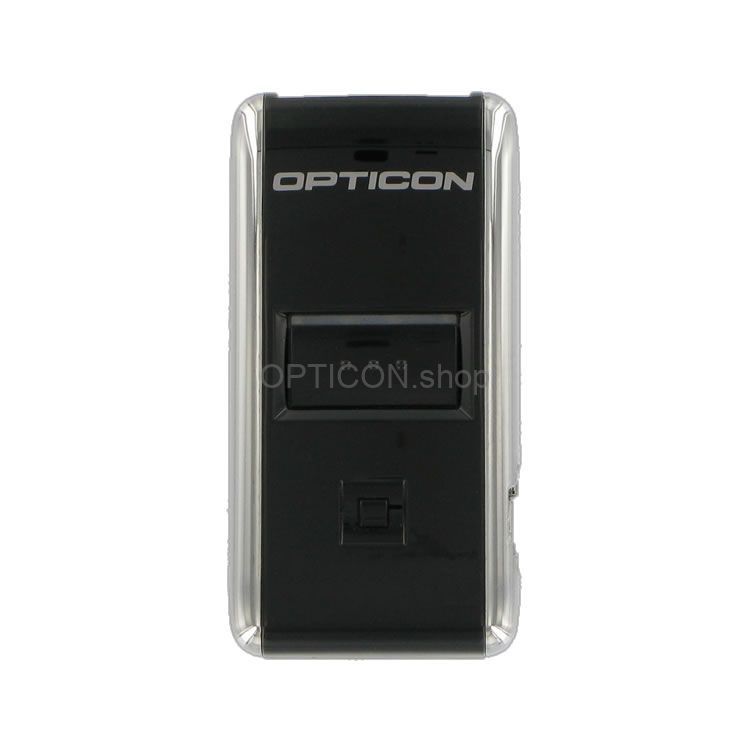

The OPN-2001, part of the OPN-2000 series is a pocket memory scanner, enabling convenient barcode data collection. This device enables storage and removal of barcode scans. The collected barcodes can be transmitted by a USB cable.
This small and lightweight device is equipped with a memory that can store more than 15.000 barcodes. With a weight less than 30 grams, it can be put in every pocket and taken everywhere.
Ease in use
Using the OPN-2001 is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes. With the USB cable it is possible to send scanned data to a computer. The battery can also be charged using this cable.
Product Features
USB communication interface
For easy data transfer the Opticon OPN2001 is equipped with a standard USB port, which is also used to charge the internal battery.
Large internal memory
Over 10.000 codes can be stored and removed on the Opticon OPN2001 by the user at any time
Lightweight (only 28 grams)
Opticon OPN2001 Provides mobility and flexibility
Two button operation
The Opticon OPN2001 is Plain and simple to use
Properties
Physical
Technical details
IP Ratings (Ingress Protection)
A two-digit number established by the International Electro Technical Commission, is used to provide an Ingress Protection rating to a piece of electronic equipment or to an enclosure for electronic equipment.
The protection class after EN60529 are indicated by short symbols that consist of the two code letters IP and a code numeral for the amount of the protection.
Example: IP65 (NEMA 4)
The two digits represent different forms of environmental influence:
• The first digit represents protection against ingress of solid objects.
• The second digit represents protection against ingress of liquids.
The larger the value of each digit, the greater the protection. As an example, a product rated IP54 would be better protected against environmental factors than another similar product rated as IP42.
IP TABLE:
| IP.. | First digit: Ingress of solid objects |
Second digit: Ingress of liquids |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protected against solid objects over 50mm e.g. hands, large tools. | Protected against vertically falling drops of water or condensation. |
| 2 | Protected against solid objects over 12.5mm e.g. hands, large tools. | Protected against falling drops of water, if the case is disposed up to 15 from vertical. |
| 3 | Protected against solid objects over 2.5mm e.g. wire, small tools. | Protected against sprays of water from any direction, even if the case is disposed up to 60from vertical. |
| 4 | Protected against solid objects over 1.0mm e.g. wires. | Protected against splash water from any direction. |
| 5 | Limited protection against dust ingress. (no harmful deposit) |
Protected against low pressure water jets from any direction. Limited ingress permitted. |
| 6 | Totally protected against dust ingress. | Protected against high pressure water jets from any direction. Limited ingress permitted. |
| 7 | N/A | Protected against short periods of immersion in water. |
| 8 | N/A | Protected against long, durable periods of immersion in water. |
| 9k | N/A | Protected against close-range high pressure, high temperature spray downs. |
| Not Rated |
The device's IP for solid objects has not been rated. | The device's IP for liquids has not been rated. |
USB-HID
HID = Human Input Device ; output emulated like a keyboard.
The data is entered at the point of the cursor or current focus (in a form).
Language and keyboard selection need to match between scanner and host!
USB-VCP
VCP = Virtual Comm Port ; output is send to the assigned comm port.
In most cases a driver is neccessary!
USB-MSD
MSD = Mass Storage Device ; emulates storage like an USB-stick.
Plugging in the device in this mode makes the devices' internal storage directly accessible from your host.
In general in Windows you will see a pop-up/notification of a drive letter that has been mounted.
USB-OTG
OTG = On The Go ; enables the USB port to act as a host on PDA's/smartphones and tablets, allowing input from a keyboard.
The data is entered at the point of the cursor or current focus (in a form).
Language and keyboard selection need to match between scanner and host!
ETHERNET
Wired Ethernet connection via DHCP or Fixed IP.
Older supported protocols:
ActiveSync
Communication through Microsoft ActiveSync.
RS232
Communication through the wired direct RS232 protocol.
Wedge
Old style PS/2 connections for keyboard/mouse communication.
- USB-HID
- USB-VCP
Which type of symbologies can be decoded?
.png) |
 Code 39 |
 Code 128 |
 EAN-13 |
.png) |
 QR-code |
 Datamatrix |
 Aztec |
.png) |
Machine Readable Travel Documents |
 |
|
These are samples to show what is meant by this feature.
Please contact us for assistance when in doubt about scanning/decoding functionality.
- 1D
