Opticon MDI-4700



Flatcable connection
2D codes (both 1D and 2D)

In stock

15149


  • Official OPTICON partner
  • Free shipping on orders over € 500
  • the largest accessory selection
  • Opticon experts
  • custom made solutions
  • over 30 years experience
  • Shipped with UPS Carbon Neutral


110,00 (VAT excluded)
- +

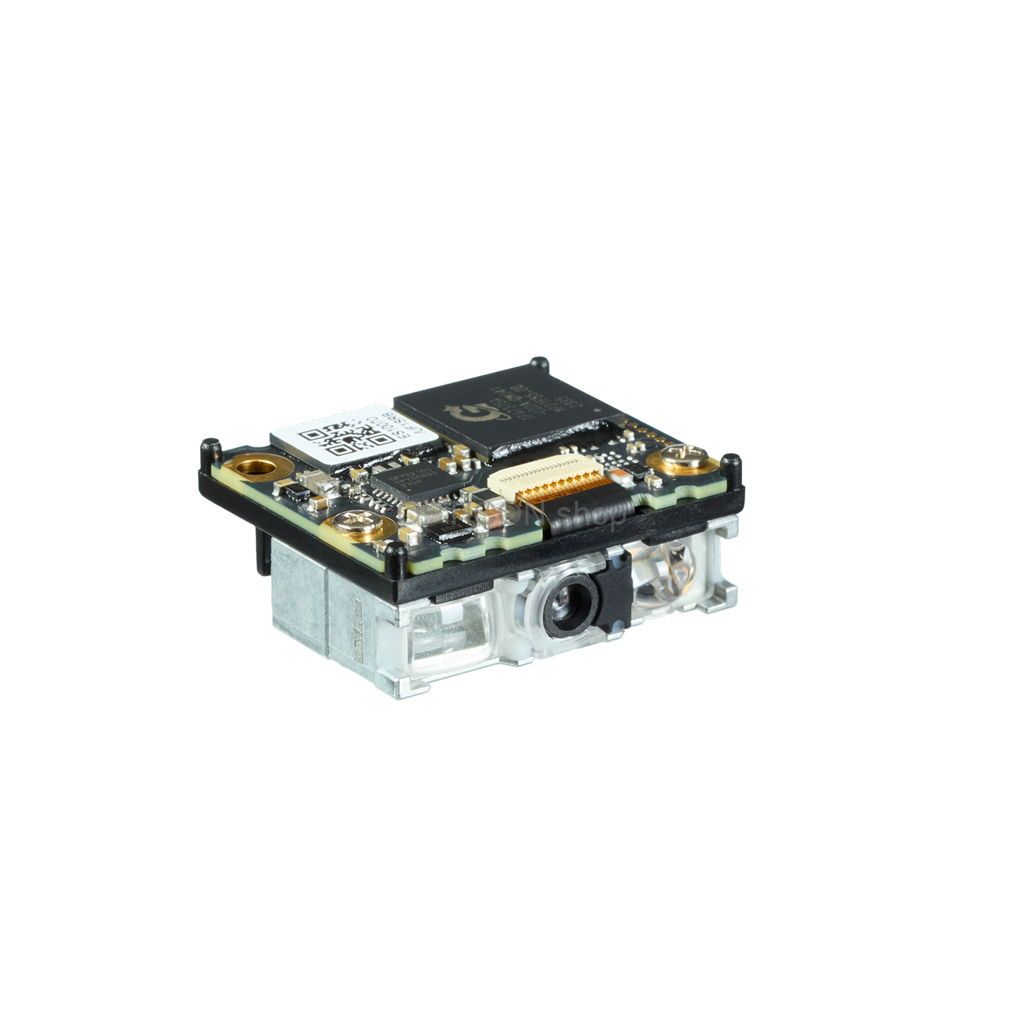

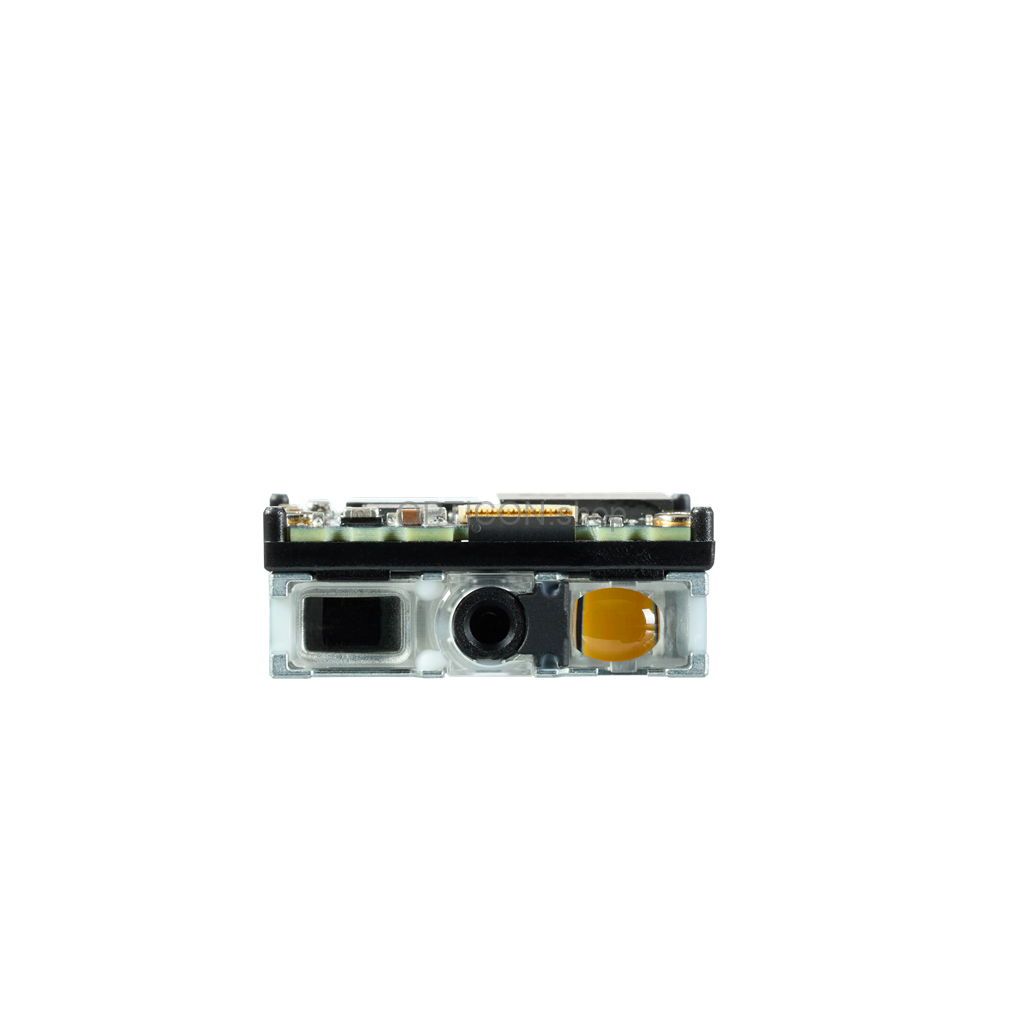

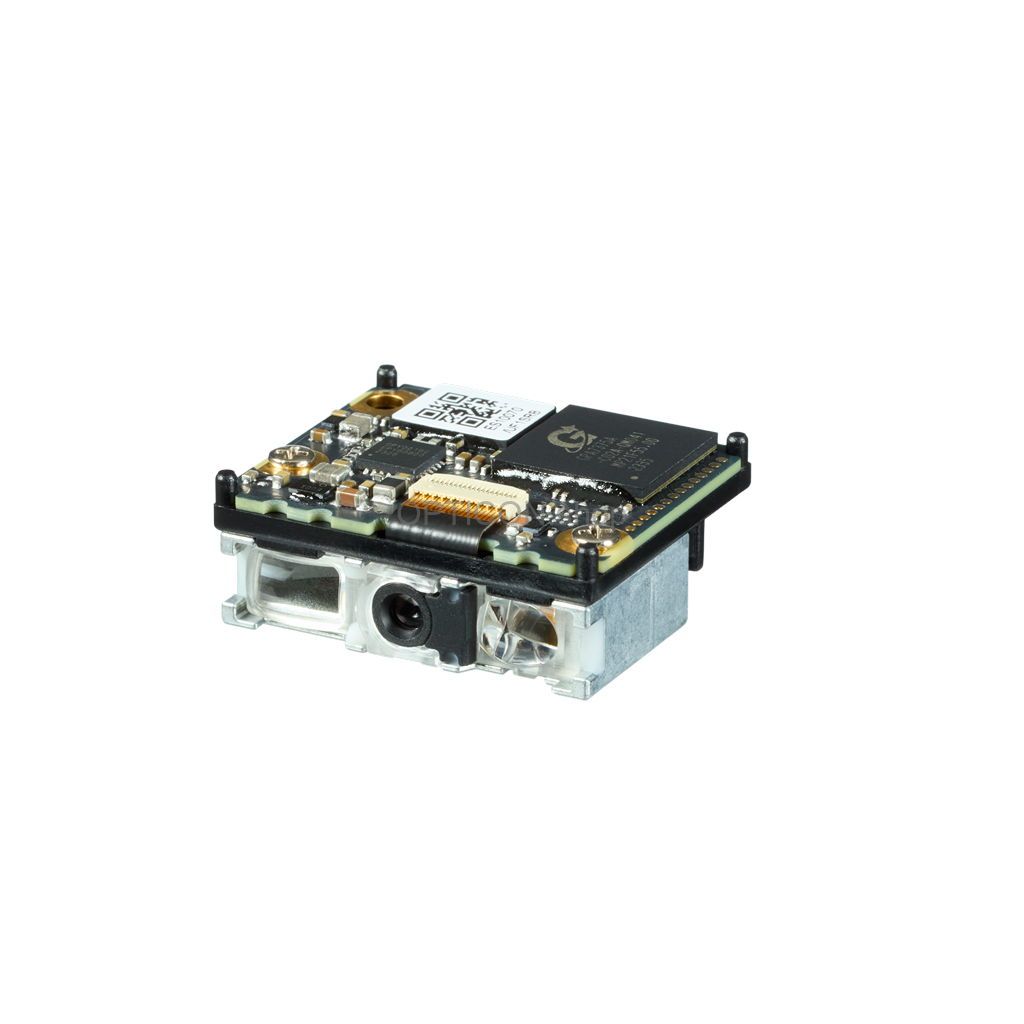

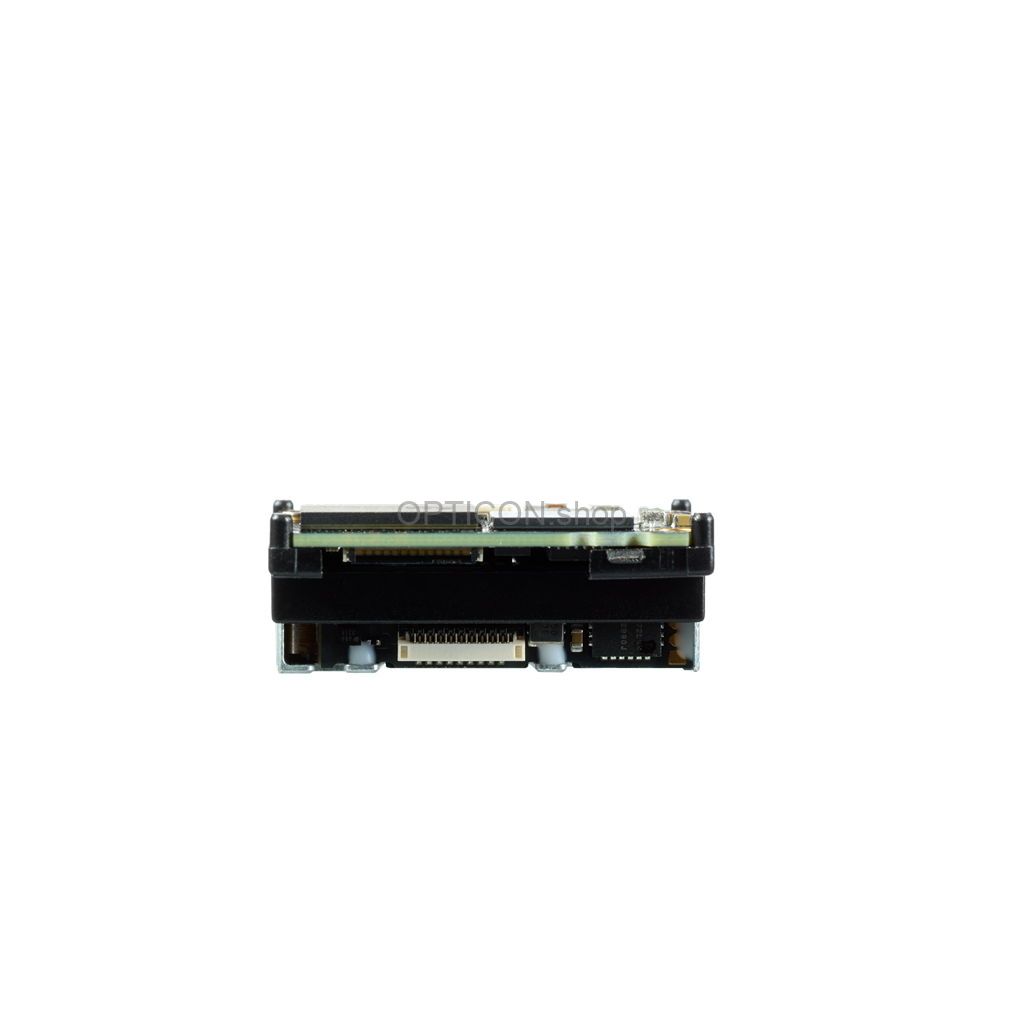

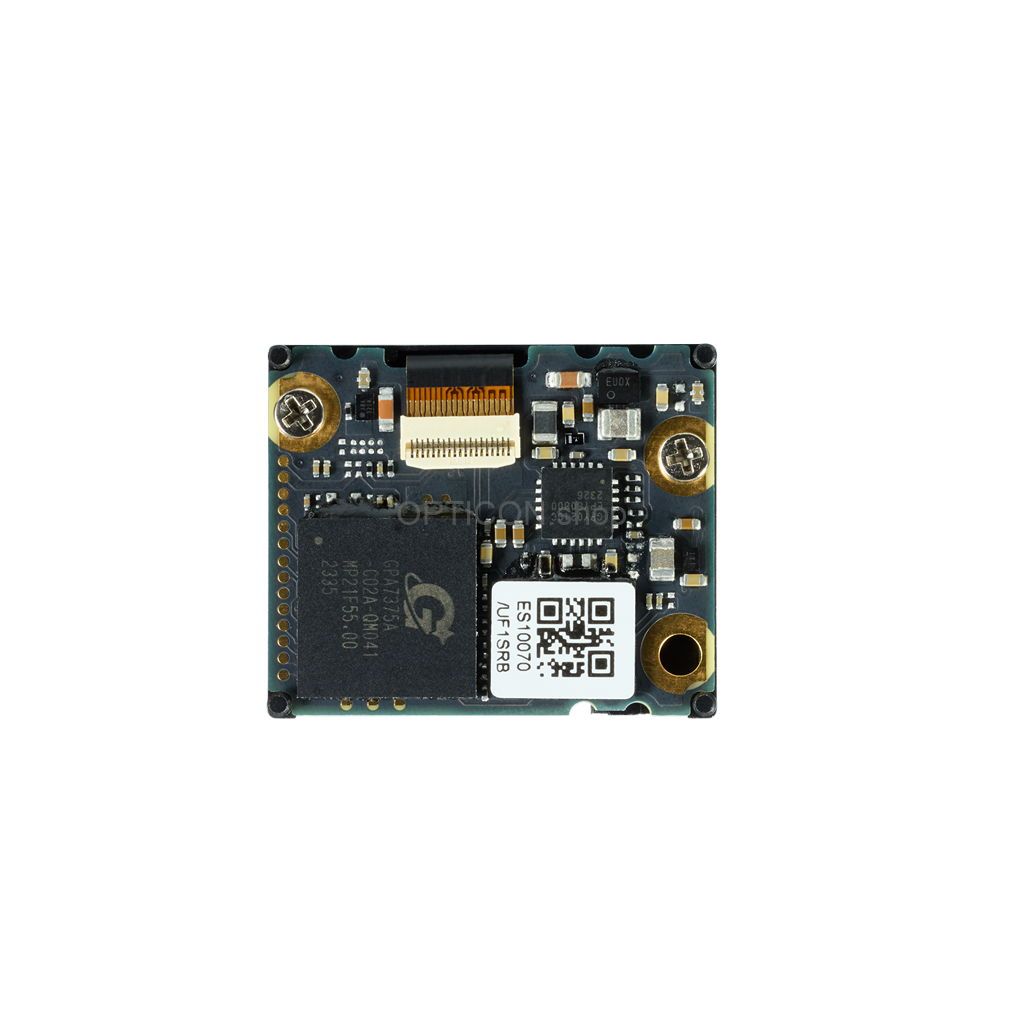

The MDI-4700-SR imager scan engine is a cutting-edge solution for high-speed scanning of 1D (linear) and 2D codes, as well as OCR fonts. With its ultra-thin profile and integrated decoder, this scan engine is designed for easy integration into compact devices such as PDA’s, data collectors, and ticket readers.

Overview

  • World’s Thinnest 2D Imager Scan Engine: The MDI-4700 boasts a mere 10mm height, making it the world’s thinnest 2D imager scan engine. This feature facilitates seamless integration into even the most compact equipment.
  • High-Speed Reading: The advanced decoder ensures stress-free scanning and rapid response, even in challenging conditions such as poor-quality codes, movement, vibration, and low lighting.
  • Low Power Consumption: The MDI-4700 minimizes power consumption in operating, standby, and low-power states. Configurable power-saving settings optimize consumption for specific applications.
  • Enhanced Imager Engine Performance: The optimized lens design and decoder enhance the imager engine’s far-field scanning range and refine near-field 2D minimum resolution.
  • High-Speed Image Sensor: Equipped with a high-speed CMOS image sensor capturing images at up to 120 fps, coupled with the fastest global shutter speed in the industry, enabling fast and accurate scanning.
  • Fastest Image Processing: The 800MHz CPU ensures smooth response by processing vast amounts of information transferred by the ultra-fast 120 fps CMOS image sensor in a short time.
  • Data Edit Programming: Capable of batch reading 1D codes (up to 16 pieces), 2D codes, and OCR. Supports DMRE, DPM, Dot code, OCR and GS1 data conversion.
  • Green LED Aiming and Warm-White LED Illumination: Features a well-defined single line of green LED light for aiming and efficient warm-white LED illumination for safety and longevity.
  • RoHS Compliance: The MDI-4700 is a RoHS-compliant product.


Development board

For the testing and evaluating of this scan engine we have a development board, the MEK-3100. This separately sold development kit enables you to evaluate the scan engine without the need to develop any electronics or cables. Take a look at the MEK-3100 kit here.

Properties

Warranty:
2 years
Scanner type:
Scan Engines (OEM)

Physical

Dimensions (W x D x H):
25.3 x 10 x 21 mm
Weight:
7.1 g
Connection(s) :
  • FLAT cable

Technical details

Scan engine:
Imager (1D & 2D)
Barcodes :
  • 2D



Datasheet - Opticon MDI-4700 (MDI-4700_Leaflet.pdf, 1,245 Kb) [Download]

Opticon MDI-4700 Specification Manual (MDI-4700_Specification_manual.pdf, 1,185 Kb) [Download]

Opticon MDI-4700 Declaration of Conformity (MDI-4700_DoC.pdf, 123 Kb) [Download]

Opticon MRTD- Machine Readable Travel Documents (Machine_Readable_Travel_Documents.pdf, 124 Kb) [Download]
